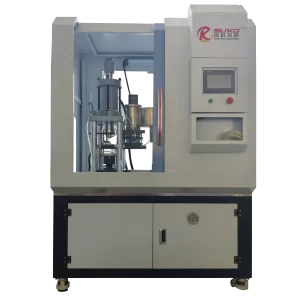

Polymer PTFE Plastic Automatic Molding Machine
Polymer PTFE Plastic Automatic Molding Machine

Polymer PTFE Plastic Automatic Molding Machine

1. Characteristics of PTFE Molding Machine

  1. Molding Machines are divided into manual, semi-automatic and fully automatic molding machines. Through continuous improvement of the molding press technology, the equipment is more intelligent, more stable, and more efficient.
  2. The intelligent automatic type is controlled by PLC system, to set the pressure, range, speed, quantity, and dwell time, and the operation is simple.
  3. With diverse design, the equipment can meet the different needs of users, and be customized for customers.
  4. The equipment runs stably for a long time, with lower noise. And reduces costs by saving power and energy during pressure maintenance.
  5. Equipment and molds are made by special technology, corrosion resistance, durable and with long service life.
  6. The equipment design is simple and takes up little space.
  7. Molding products have superior performance in terms of density and tensile strength with no flash, no burrs.
  8. Fully automatic moulding machine, automatic powder suction,alarm when powder out ,and counting.
  9. Fast molding speed with no powder flying out, save raw material. .
  10. Molding is divided into pressing methods from top to bottom, bottom to top and simultaneous double-sided pressing.
  11. Molding process can directly mold the customer’s desired shape, saving manufacturing procedure, material and process cycle.
  12. Granulating material, self-flowing powder, non-self-flowing powder can be used in molding machine.
  13. The molding machine is equipped with automatic push-out function (as shown in the picture).

Description

2. Equipment Operating Environment Requirements

  1. The ground of the site is required to be level, and the site load is not less than the design requirements.
  2. The operating platform needs clean space to reduce dust ingress. It is best to have ventilation ducts in the workshop to facilitate ventilation.
  3. Industrial power standard 380V 50Hz 3P, voltage can be customized according to user needs.
  4. The factory is equipped with power distribution cabinets, compressed air and other supporting equipment.
  5. The room temperature of the plant should be no more than 28 ° C.

3. Equipment Parameter

Machine Type SUKO-3T-01 SUKO-20T-05 SUKO-60T-05 HGB-70 PBM-180 SAP-200 Customerize
Pressure(T) 3T 20T-45T 60T-95T 10T 60 T 80T 10-5000T
Power(KW) 1.5 4 5.5 2.7 5.2 7.2
OD Range Φ 10-35 35-100 60-180 10-50 110 250 1-2500
Thk Range(mm) ≤12 ≤12 ≤15 2-6 ≤110 ≤10 3-100
Output 540 240-300 240-300 750-1500 300-1500 300-600
Weight(KG) 500 1300 2100 1100 1050 1500
Area(m2 1.5 1.8 2.3 1.6 1.2 1.2

4. Equipment And mold Maintenance

  1. Regularly check the height, cleanliness and temperature of the hydraulic oil.
  2. It is recommended to replace the hydraulic oil every six months.
  3. Replaced worn seals timely.
  4. The mold should be cleaned and maintained in time, and the surface should be coated with a thin layer of protective oil.

5. After Sales Service

  1. From the date of receiving the machine, the warranty period of all machine accessories is one year. We provide free maintenance guidance service during the warranty period.
  2. If there is any problem with the accessories outside the warranty period, please contact us in time to explain the problem, and we will provide follow-up resolution within 24 hours.
  3. If we have a local distributor, we can contact the local distributor for cooperation.
  4. All questions about the equipment can be consulted to us by mail, video, telephone, etc.

Service Phone:+86-0519-83999079


6. Related Optional Equipment

Name Brief Description



Loosening Machine

To loosen the agglomerated raw materials or powder with excessive humidity.
Powder Mixer / Powder & Auxiliary Mixer To mix powder with liquid lubricant.
Oven / Sintering furnace To heat the semi-finished products.
Recycled material crushing production line Dicer, washing machine, crusher

Please contact us for other PTFE equipment.
