Polymer Plastic PTFE Paste / Hose Extruder Machine
Polymer Plastic PTFE Paste / Hose Extruder Machine

Polymer Plastic PTFE Paste / Hose Extruder Machine

Plastic PTFE Paste Machine Features:

ü  Adopt adjustable speed to accommodate pitch ,no need to change gear while operation;

ü  High productive efficiency ; production rate is three times higher than present usual machine per hour ,the max production reach to 98m/hour;

ü  Low noise ,transmission and pulling system adopt absorbing sound ,reducing shake and inserting equipment;

ü  Easy maintenance ,transmission flexible, structure easy install and remove.

ü  More friendly to environment: no PTFE powder splashing but powder output automatically

ü  Intelligent control : producing gaskets by controlling the power quantity

ü  More time saving : the power cut off automatically while the production number set up

ü  Longer working life : no heat while working.

ü  high quality components used.

Description

Flow Chart

Paster Extrusion tube process:

PTFE Fine Powder raw material →Sifting →Mix with solvent→ Heating→ Performing → Extrusion→ Sintering  → Finished Tube.

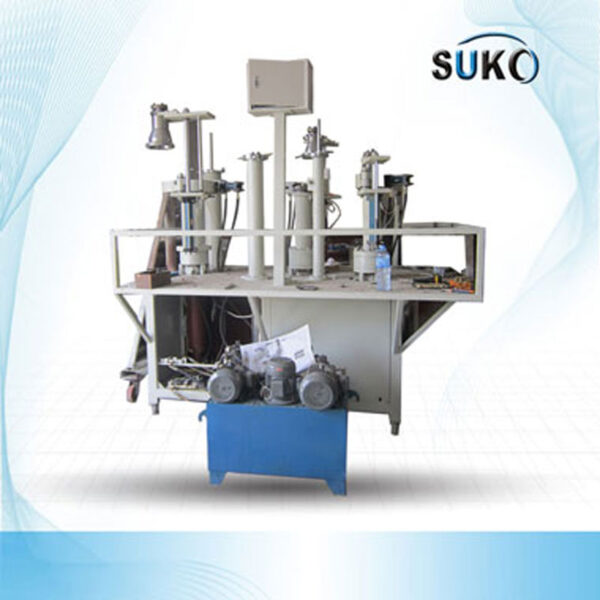

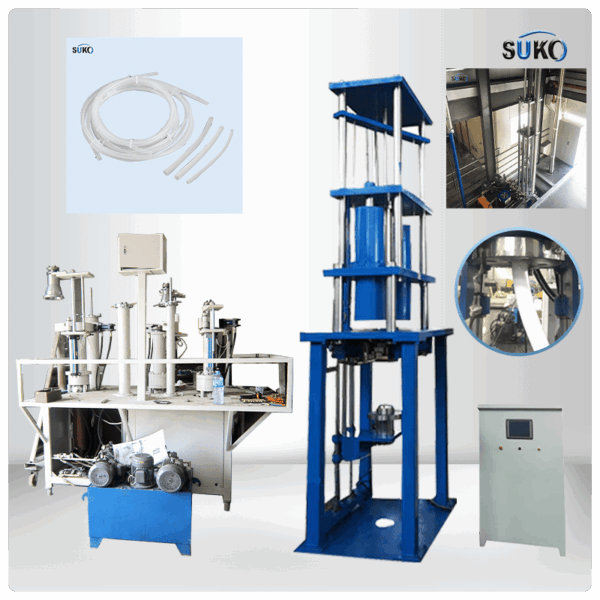

Matched machine: Machine screening, Mixing machine, Performing machine, Extruder machine, and Furnace heating, Mould.

Techincal Data:

Paste Extruder Type & Technical Data

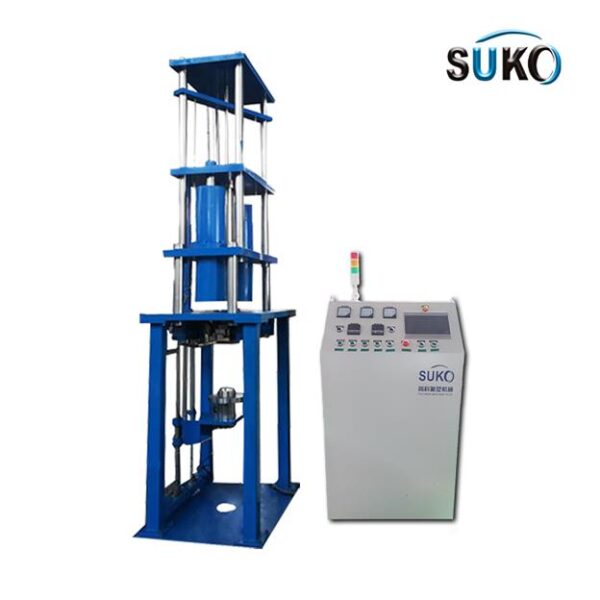

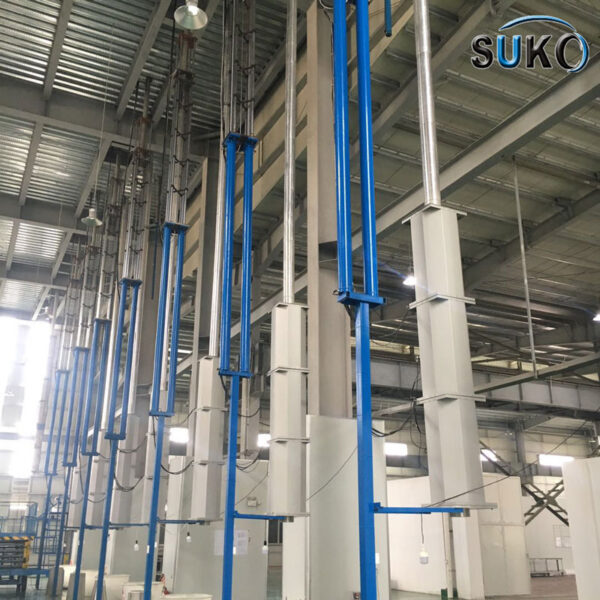

DX-D01 (suit for 25-60 lodaing cavity)OD:2mm-6mm PTFE Paste extrusion Hose Main machine : 30KW power 380V 50Hz one key start with hydraulic drive.1.2M high for material load cavity.WorkBlank machine : 3KW with 380V 50Hz Hydraulic drive PTFE blank high with 300-600mm.Furnace : 18KW 380V 50Hz with total high 8.5M 500 degree temperature.
DX-100(suitable for 60-120 loading cavity)OD:6MM-60MM -2 loading cavity FE Paste extrusion Hose Main machine : 30KW power 380V 40Hz one key start with hydraulic drive.1.5M high for material load cavity.WorkBlank machine : 3KW with 300V 50Hz Hydraulic drive PTFE blank high with 300-600mm.

PTFE Hose Machine Specifications

* Long service life through solid workmanship and use of high quality components* Low wall thickness tolerance through self-centering mandrel and special nozzle* Measurement transducer like pressure, force and ram speed for permanent control of the extrusion process and extrusion speed* Hydraulic closure with high closing force for quick loading of the extruder* Special pre-form press with pre-form preparation device for multiple loading of the loading carriage i.e. extruder* Electrically adjustable mandrel* Measuring and controlling system for constant extruder speed* Controlling system for constant speed of the extrudate* User-friendly and maintenance-free system* The paste extrusion systems are designed especially to costumers requests* Automatic adjustment of the total system as well as recording of the formula* Operating through touch screen and recording of the extrusion process parameters

Get In Touch With Us Today

Our staff works closely with each customer to ensure that every job meets your exact requirements and our high quality standards. Contact Sunkoo today!

Please note:  Any technical data provided is for informational purposes only.  Before specifying this machine for your application, please let us know you requirement to better advise suitable machine for you.
