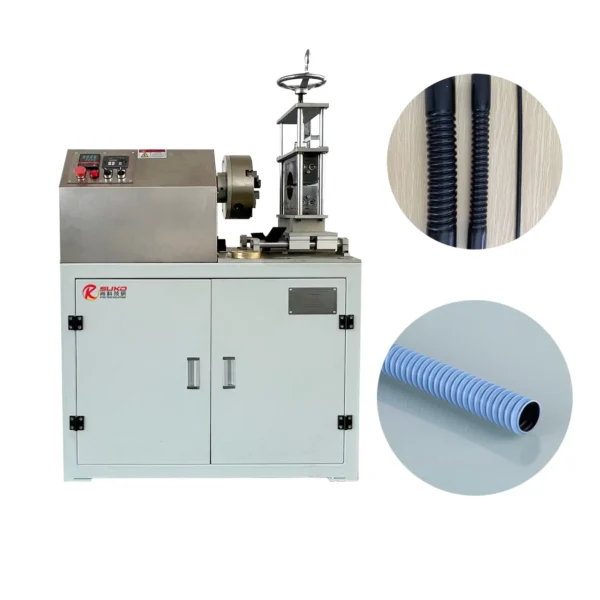

Corrugated PTFE tubing is specified by engineers across automotive, chemical processing, pharmaceutical, and food & beverage industries because its corrugated geometry delivers exceptional flexibility while maintaining the chemical inertness and temperature resistance that only PTFE can provide. The key to producing consistently high-quality corrugated PTFE tubing lies in using purpose-designed production equipment that can handle PTFE paste extrusion, automatedcorrugated forming, and in-line quality monitoring without compromising material properties. SuKo Machinery designs and manufactures the PTFE Plastic Corrugated Pipe Machine—a turnkey production system built for manufacturers who require high output rates, tight dimensional tolerances, and reliable equipment uptime.
The machine accepts PTFE paste formulations and processes them through precision extrusion dies to create smooth-walled tube blanks, which are then continuously formed into corrugated profiles by a motorized forming station. The resulting corrugated tube combines superior chemical resistance with the flexibility required for tight routing in engine compartments, chemical processing manifolds, and medical device delivery systems. Sukoptfe supplies this equipment to manufacturers worldwide, with process documentation and technical support that enables rapid production ramp-up and consistent output quality.
Why Corrugated Geometry Transforms PTFE Tubing Performance
The addition of corrugated geometry to PTFE tubing is not merely cosmetic—it fundamentally alters the mechanical properties of the tube in ways that matter for real-world engineering applications. A smooth-walled PTFE tube, while chemically inert, has limited bend radius and can kink under sharp directional changes, restricting flow and potentially failing in dynamic service. Corrugated PTFE tubing solves this problem by allowing the tube wall to compress and expand along the corrugation peaks, achieving tight bend radii without kinking, cracking, or flow restriction.
In automotive engine compartments, corrugated PTFE tubing is used in fuel lines, brake systems, and thermal management circuits where space constraints demand tight routing and vibration resistance. In chemical processing plants, corrugated PTFE tubes serve in peristaltic pumps, sampling systems, and aggressive-media transfer lines where the combination of chemical resistance and flexibility extends service life compared to rigid piping alternatives. In medical devices, corrugated PTFE tubing enables the construction of flexible catheters and endoscopic instruments that must navigate anatomical pathways without damaging surrounding tissue.
Machine Specifications and Configuration Options
The SuKo PTFE Corrugated Pipe Machine is engineered for flexible production volumes ranging from small batch prototyping to high-volume continuous manufacturing:
| Pipe Diameter | DN1/2-32inch |
| Pipe Material | SS304,316L,etc |
| Pipe thickness | 0.18-2.0mm |
| Braided mesh material | SS304 etc |
| Braided mesh layer | single layer or double layers |
| Max. woking pressure | 10Mpa |
| Working temperature | (-196)~(+700) °c |
| Connect type | flange,thread,welded.etc |
| Standard | ANSI,JIS,DIN,GOST,etc |
| Flange material | stainless steel or carbon steel |
| Pipe assembly length | according to clients’ requirements |
Applications Across Automotive, Chemical, Pharmaceutical, and Food Industries
The automotive industry is one of the largest consumers of corrugated PTFE tubing. Fuel lines running from fuel pumps to injectors must withstand continuous exposure to petroleum-based fuels, ethanol blends, and the thermal cycling imposed by engine operation. Corrugated PTFE tubing handles these conditions reliably, and the corrugated geometry allows the lines to route through tight engine bay geometry without adding rigid connectors at every bend point. This reduces the number of fittings, which reduces potential leak points and lowers assembly cost.
In chemical processing, manufacturers specify corrugated PTFE tubing for sampling lines, peristaltic pump tubing, and chemical transfer lines handling concentrated acids, bases, and organic solvents. The chemical inertia of PTFE means the tube material does not swell, embrittle, or degrade when in contact with aggressive media, providing long service life even in demanding applications. Corrugated geometry allows these tubes to be routed through complex process equipment without the leaks and joint failures associated with rigid piping systems.
Pharmaceutical and food & beverage applications require tubing that meets regulatory standards for purity, extractables, and cleanability. PTFE meets these requirements, and the corrugated geometry facilitates clean-in-place (CIP) and sterilize-in-place (SIP) procedures by allowing cleaning solutions to flow through the full inner diameter without dead zones. The smooth inner wall of PTFE corrugated tubing prevents residue accumulation, supporting validated cleaning procedures that regulatory agencies require.
Why Choose SuKo Machinery Corrugated Pipe Equipment
- Fully automated PTFE paste extrusion and corrugated forming in a single continuous production line
- Diameter range DN1/2 to 32 inches covers the full spectrum of automotive and industrial tube sizes
- SS304 and SS316 stainless steel braid reinforcement for high-pressure service up to 10 MPa
- Working temperature range from -196°C to +700°C handles cryogenic and high-temperature fluid media
- Corrugated geometry enables tight bend radii without kinking or flow restriction
- Flange, threaded, and welded end fitting options for straightforward integration into existing piping systems
- Standard ANSI, JIS, DIN, and GOST flange configurations for global market compatibility
Frequently Asked Questions
What diameter range can the PTFE Corrugated Pipe Machine produce? The machine produces corrugated PTFE tubing in diameters from DN1/2 to 32 inches, covering most industrial and automotive tube size requirements.
What wall thickness options are available? Wall thickness ranges from 0.18 to 2.0 mm, configurable to match specific pressure rating and flexibility requirements.
Can the machine produce double-layer corrugated tubes? Yes. The machine supports both single-layer and double-layer braided mesh reinforcement configurations for standard and high-pressure applications.
What materials can be processed on this equipment? The machine handles PTFE paste formulations, and can accommodate SS304, SS316, and other stainless steel braid reinforcement materials as well as custom specifications.
What industries is this equipment typically purchased for? Primary industries include automotive (fuel lines, brake tubing, thermal management), chemical processing (corrosive media transfer), pharmaceutical (CIP/SIP systems), and food & beverage (clean fluid transfer).
Does SuKo Machinery provide installation and process start-up support? Yes. SuKo Machinery provides on-site installation guidance, process commissioning, and operator training as part of the standard customer support package.
Conclusion: Dependable Corrugated PTFE Tubing Production Equipment
Investing in a corrugated PTFE tube production line is a decision that impacts your product quality, output capacity, and manufacturing cost structure for years to come. SuKo Machinery combines proven equipment engineering with process expertise to deliver production lines that achieve high output rates, tight dimensional tolerances, and reliable performance across thousands of operating hours.
Whether you are entering the corrugated PTFE tubing market for the first time or expanding an existing production facility, SuKo Machinery offers equipment configurations matched to your production volume, tube size requirements, and quality specifications. Contact our engineering team to discuss your requirements and receive a detailed equipment specification and process proposal.
