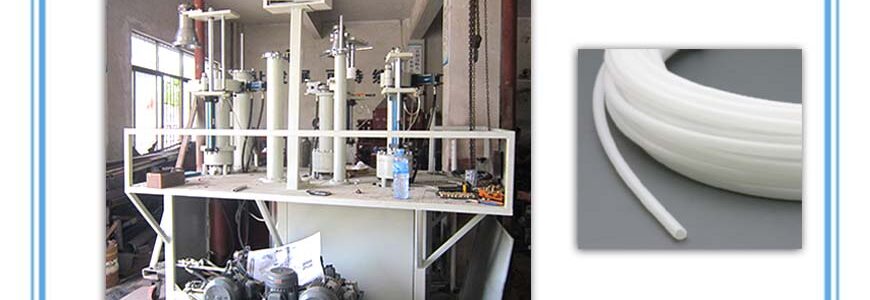

Sunkoo PFG150 Single Screw Extruder Features:Vertical Ram Extruder for PTFE tube;Ram extruding machine for PTFE tube;Using for Pre-sintering PTFE material;Suit for new PTFE material or Recycle PTFE material;Rangeof diameter PTFE Extrusion 20-150 mm, Heating zones 5 zones; Automatic.
Sunkoo PFG150 Tube Extruder is to extrude PTFE/UHMWPE Tubes. It is designed using latest technology, fully reliable and easy to operate for customers. Performance in terms of production and working hour capacity is competitive to other machines. Low maintenance is required , giving high production in market.
Features:
- Save time and money.
- PLC design and easy to operate.
- Long time span. No heating effect during operation.
- With latest technology and optimized design.
- Min – Max Dia:20-150mm.
- Production Per Hour: 10+ kg/h.
- Unlimited Length
- Automatic operation.
- 5 Heating Zones
| Type | PTFE Vertical type Ram Extruder |
| Screw | Single-Plunger |
| Automatic | Automatic |
| Computerized | Computerized |
| Plastic Processed | Sintered PTFE Powder |
| Machine with PTFE Tube Mould | Mould Depends on Required |
| Process | Extruder M/c |
| Power KW | 15 |
| Tube OD Size range | 25-150 mm |
| Tolerance THK | 0.1 – 0.2 mm |
| Tolerance OD | 0.1mm-.05mm |
| Length | Unlimited |
| Production Per Hour in Kg | 8-12 |
| Electricity Consumption Per hour | 1.2 |
| Temperature zone | 3-6 |
| Compressive force [kN] | 100 – 600 |
| Weight of the Machine | 1320 |
| High of the Machine mm | 2580 |
| Floor area of the Machine M2 | 3.5 |
| Warrenty for Parts | 1 Year |
| Machine Gurantee Period | 1 Year |
| Free Spares | 1 sets |
| Floor Hole Dia mm | 300mm |
| Frame inside size L*W | 660*660mm |
| Frame Outside size L*W | 820*820mm |
| Voltage/PH/Hz | AC380V 50Hz 3 Phase |
